Spec | Details |
---|---|

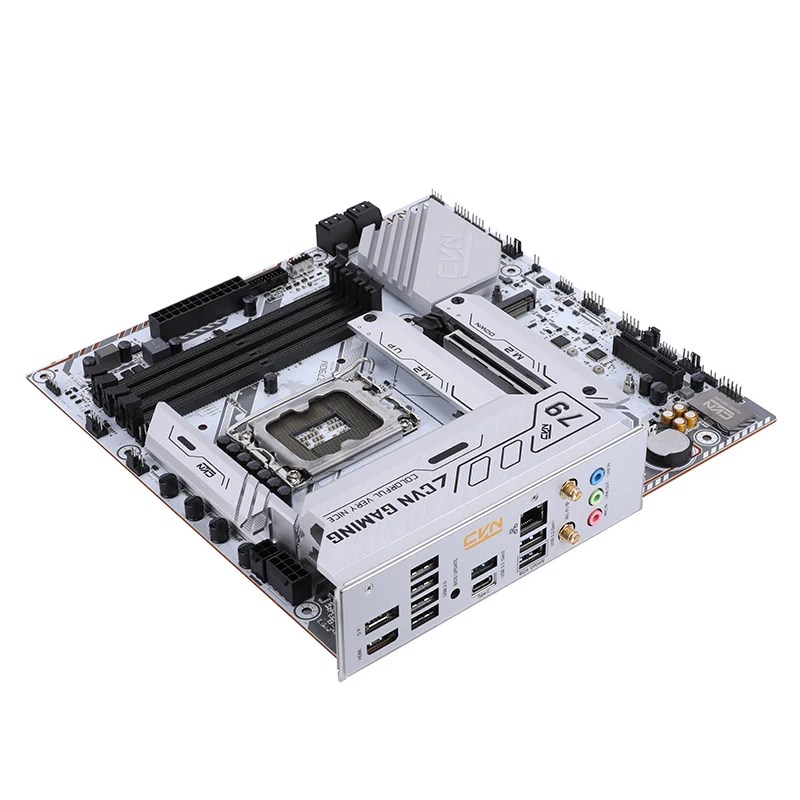

Model | CVN Z790M FROZEN V20 |
Chipset | Intel Z790 |
CPU Support | Intel 14th/13th/12th Gen (LGA1700) |
Memory | 4× DDR4 (up to 128GB), up to DDR4-4800 (OC), Dual Channel, XMP supported |
Storage | 3× M.2 (PCIe 4.0 x4), 4× SATA 6Gb/s, RAID 0/1/5/10 support |
Expansion | 1× PCIe 5.0 x16, 1× PCIe 3.0 x4 |
Rear I/O Ports | USB-C, USB 3.2, 4× USB 2.0, HDMI 2.0, DP 1.2, 2.5G LAN, Wi-Fi 6, Audio |
Networking | 2.5G LAN, Wi-Fi 6, Bluetooth 5.2 |
Audio | 5.1 Channel HD Audio |
Cooling Support | 1× CPU fan, 3× system fans, water pump, ARGB/RGB headers |
Form Factor | M-ATX (245 × 245 mm) |
Extra Features | BIOS update button, RGB control, CMOS reset, POST card pin |
